The SMI Tables Map

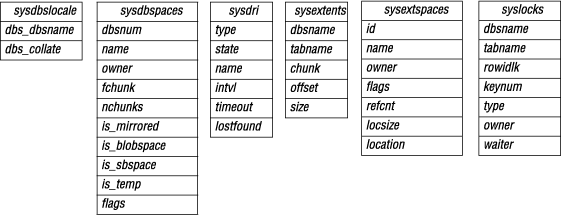

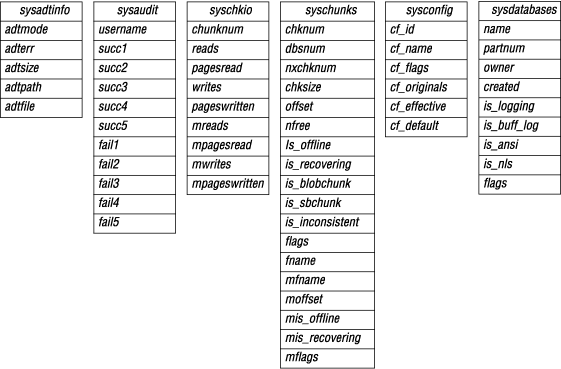

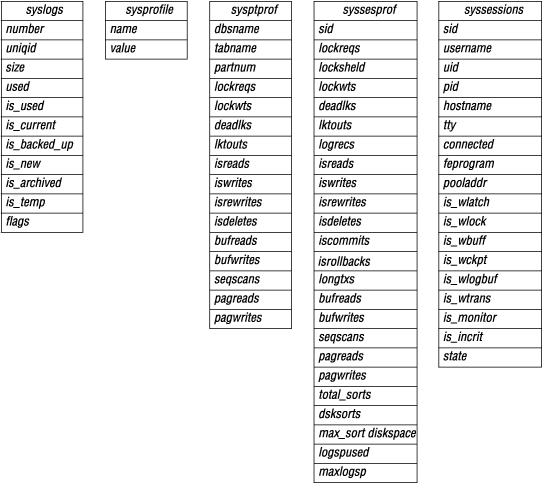

Figure 1 displays the columns in some of the SMI tables.

Figure 1. Columns in the SMI tables
begin figure description - This figure is described in the surrounding text. - end figure description
begin figure description - This figure is described in the surrounding text. - end figure description
begin figure description - This figure is described in the surrounding text. - end figure description
