The basic unit of database server I/O is a page.
In Extended Parallel Server, you can configure the page size through the PAGESIZE configuration parameter. For more information, see PAGESIZE.
The database server can store rows that are longer than a page. The database server also supports the VARCHAR data type, which results in rows of varying length. As a result, rows do not conform to a single format.
Rows within a table are not necessarily the same length if the table contains one or more columns of type VARCHAR. In addition, the length of a row in such a table might change when an end user modifies data contained in the VARCHAR column.
The length of a row can be greater than a page.
TEXT and BYTE data is not stored within the data row. Instead, the data row contains a 56-byte descriptor that points to the location of the TEXT or BYTE data. That data is stored in a separate BLOB fragment. There is one BLOB fragment for every data fragment in a tblspace that contains a TEXT or BYTE column.
For instructions about how to estimate the length of fixed-length and variable-length data rows, see your IBM Informix: Performance Guide.
The database server identifies each data row in a table with a unique internal rowid. This rowid identifies the location of the row within the dbspace. To obtain the internal rowids for a table, use the internal rowid column when selecting from a non-fragmented table, or the onutil CHECK DATA command with the DISPLAY option.
In a nonfragmented table, the term rowid refers to a unique 4-byte integer that defines the physical location of the row in the table. The page that contains the first byte of the data row is the page that is specified by the rowid. This page is called the data row home page.
Every data row in a nonfragmented table is uniquely identified by an unchanging rowid. When you create an index for a nonfragmented table, the rowid is stored in the index pages associated with the table to which the data row belongs. When the database server requires a data row, it searches the index to find the key value and uses the corresponding rowid to locate the requested row. If the table is not indexed, the database server might sequentially read all the rows in the table.
Eventually, a row might outgrow its original storage location. If this occurs, a forward pointer to the new location of the data row is left at the position defined by the rowid. The forward pointer is itself a rowid that defines the page and the location on the page where the data row is now stored.
Unlike rows in a nonfragmented table, the database server does not assign a rowid to rows in fragmented tables. If user applications attempt to reference a rowid in a fragmented table, the database server returns an appropriate error code to the application.
It is recommended that application developers use primary keys as a method of access rather than rowids. Because primary keys are defined in the ANSI specification of SQL, using them to access data makes your applications more portable.
For a complete description on how to define and use primary keys to access data, see the IBM Informix: Guide to SQL Reference and the IBM Informix: Guide to SQL Tutorial.
The variable length of a data row has the following consequences for row storage:
The following paragraphs describe the guidelines that the database server follows during data storage.
To minimize retrieval time, rows are not broken across page boundaries unnecessarily. Rows that are shorter than a page are always stored as whole rows. A page is considered full when the count of free bytes is less than the number of bytes needed to store a row of maximum size.
When the database server receives a row that is longer than a page, the row is stored in as many whole pages as required. The database server then stores the trailing portion in less than a full page.
The page that contains the first byte of the row is the row home page. The number of the home page becomes the logical page number contained in the rowid. Each full page that follows the home page is referred to as a big-remainder page. If the trailing portion of the row is less than a full page, it is stored on a remainder page.
After the database server creates a remainder page to accommodate a long row, it can use the remaining space in this page to store other rows.

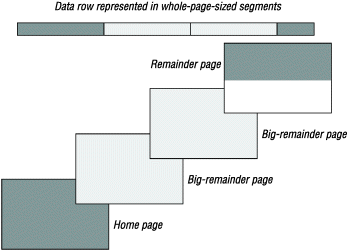

Figure 12 illustrates the concepts of home page, big-remainder page, and remainder page.
Over time, the free space on a page can become fragmented. When the database server attempts to store data, it first checks row length against the number of free bytes on a page to determine if the row fits. If adequate space is available, the database server checks if the page contains adequate contiguous free space to hold the row (or row portion). If the free space is not contiguous, the database server calls for page compression.
